MiSTer TurboGrafx16
MiSTer TurboGrafx16 is a free, self-hosted MiSTer core for TurboGrafx-16 CD and PC Engine CD software.
What MiSTer TurboGrafx16 is
MiSTer TurboGrafx16 is a free, self-hosted MiSTer core for TurboGrafx-16 CD and PC Engine CD software. Its rewritten CPU and VDC target cycle-accurate operation. The core supports CD-ROM, Super CD-ROM, CD+G, Arcade Card, SuperGrafx mode, and backup memory saves. Controllers include Turbotap, two-button and six-button joysticks, mouse, pachinko controller, and the XE-1AP analog controller. Street Fighter II and Populous mappers, Memory Base 128 storage, a cheat engine, and CHD support are included. Installation uses a precompiled RBF file from the repository releases folder: copy it to the SD card root and place ROMs in TGFX16. CD images must be unzipped BIN/CUE or CHD files in separate TGFX16-CD folders with the required BIOS. CD+G works only with CloneCD-format games, not CHD. The core may run on onboard DDR3, but SDRAM is highly recommended because DDR3 latency can cause glitches. Specialized controller options may also misbehave in unsupported games.
Good
- Free open-source MiSTer core
- Cycle-accurate rewritten CPU and VDC
- Supports CD, Super CD, and SuperGrafx modes
- Many controller types are supported
- Includes cheat engine and CHD support
Watch out
- Requires MiSTer hardware
- SDRAM is highly recommended for accuracy
- CD+G excludes CHD format
- Specialized controls can break unsupported games
Who it suits
It suits MiSTer owners who want TurboGrafx-16 or PC Engine CD support, including SuperGrafx and Arcade Card software. Users should be comfortable organizing ROMs, CD images, BIOS files, and optional SDRAM.
Verdict
MiSTer TurboGrafx16 covers a broad range of TurboGrafx-16 and PC Engine CD modes in one free core. Setup rules, CD+G restrictions, and the SDRAM recommendation matter before using it.
Plans and prices
From MiSTer TurboGrafx16's own pricing page, checked 11 Oct 2026.
| Plan | Price | What it gives you |
|---|---|---|
| TurboGrafx16_MiSTer core | Free | Precompiled core for MiSTer; requires MiSTer hardware; SDRAM highly recommended for maximum accuracy |
The facts
Each one read from MiSTer TurboGrafx16's own pages, with the date it was checked.
What it does
- Accuracy
- The CPU and VDC were rewritten for cycle accuracy.checked 11 Oct 2026
- Additional features
- The core includes Street Fighter II and Populous mappers, Memory Base 128, a cheat engine, and CHD support.checked 4 Oct 2026
- CD+G limit
- CD+G works only with CloneCD-format games and is not supported in CHD format.checked 11 Oct 2026
- CD image formats
- CD-ROM images must be BIN/CUE or CHD, stored in individual folders under TGFX16-CD, alongside the required BIOS file.checked 4 Oct 2026
- CD images
- CD-ROM images must be BIN/CUE or CHD files in TGFX16-CD, with each image in its own folder; CD images should not be zipped.checked 11 Oct 2026
- Compatibility limit
- The project warns that enabling six-button, mouse, or other specialized controller features for unsupported games can make them work incorrectly.checked 4 Oct 2026
- Controllers
- Supported controllers include Turbotap, 2-button and 6-button joysticks, mouse, pachinko controller, and XE-1AP analog controller.checked 11 Oct 2026
- Download

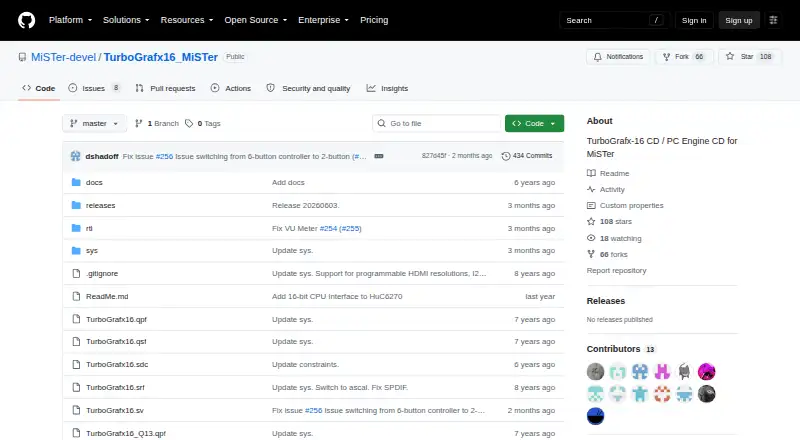

- The repository directs users to its releases folder for precompiled binaries.checked 11 Oct 2026
- Extra features
- The core includes Street Fighter II and Populous mappers, Memory Base 128 storage, a cheat engine, and CHD support.checked 11 Oct 2026
- Installation
- Installation instructions say to copy the .rbf file to the SD card root and ROMs to the TGFX16 folder; precompiled binaries are linked from the repository's releases folder.checked 4 Oct 2026
- Intended audience
- MiSTer is described as recreating classic computers, consoles, and arcade machines on modern hardware so software and game images run as on original hardware.checked 11 Oct 2026
- Memory
- The core may work without SDRAM using onboard DDR3, but the project warns that DDR3 latency can cause issues or glitches and recommends SDRAM for maximum accuracy.checked 4 Oct 2026
- Memory requirement
- The core may work with onboard DDR3 alone, but the maker says SDRAM is highly recommended because DDR3 latency can cause issues or glitches.checked 11 Oct 2026
- Origins
- The repository describes this as a MiSTer port of Gregory Estrade's FPGAPCE, with contributions from several named developers.checked 4 Oct 2026
- Project model
- The MiSTer project describes itself as open source GPL 3.0 and provides a project discussion forum.checked 11 Oct 2026
- Purpose
- The core ports TurboGrafx-16 and PC Engine, including their CD systems, to the MiSTer platform.checked 11 Oct 2026
- ROM setup
- Copy the core RBF file to the SD card root and ROMs to the TGFX16 folder; SGX is the stated extension for SuperGrafx games.checked 11 Oct 2026
- Save support limit
- Memory Base 128 provides extra storage only for a small number of games.checked 4 Oct 2026
- System modes
- Supported modes and systems include CD-ROM, Super CD-ROM, CD+G, Arcade Card, and SuperGrafx.checked 11 Oct 2026
- System support
- It supports CD-ROM and Super CD-ROM, CD+G, Arcade Card, SuperGrafx mode, and backup memory saves.checked 4 Oct 2026
