AFMG SysTune

AFMG SysTune is Windows software for analyzing audio systems in real time or from offline files.

Place
#21 of 43
Score
6.1

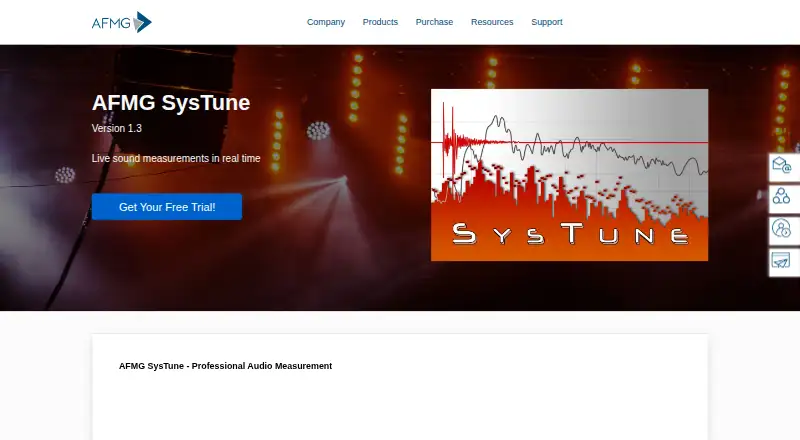

AFMG SysTune's website

What AFMG SysTune is

AFMG SysTune is Windows software for analyzing audio systems in real time or from offline files. It supports up to 8 channels and offers views including impulse response, transfer function, phase, group delay, spectrum, spectrogram, SPL, LEQ, noise criteria, histograms, coherence, and IR stability. Plugin support is not included. Its listed headquarters are in Berlin, Germany. The mix of live and file-based analysis makes it relevant to people who need to examine audio measurements in more than one setting. The range of listed views spans timing, frequency, level, and other measurement displays, while the channel limit is a key specification to consider before choosing it.

Good

  • Supports real-time analysis.
  • Can analyze offline files.
  • Includes 12 listed analysis views.
  • Supports up to 8 channels.

Watch out

  • Windows is the only listed platform.
  • No free plan is listed.
  • Plugin support is not included.

Who it suits

It may suit Windows users who need real-time or offline audio analysis and want several measurement views. The 8-channel maximum and lack of plugin support may matter when deciding whether it fits a particular setup.

Verdict

AFMG SysTune combines live and offline analysis with a broad set of measurement views. Consider its Windows-only availability, 8-channel maximum, lack of plugins, and starting price before choosing it.

Plans and prices

From AFMG SysTune's own pricing page, checked 9 Oct 2026.

All about pricing
PlanPriceWhat it gives you
AFMG SysTune Standard€450, paid onceFull Licence Measurement Software · 1 User Key · 8 channels
AFMG SysTune Pro€720, paid onceFull Licence Measurement Software · 1 User Key · channel matrix supports more than 8 channels

The facts

Each one read from AFMG SysTune's own pages, with the date it was checked.

What it does

Analysis features
It displays impulse response, frequency response, phase response, group delay, and a real-time spectrogram, and calculates RT and STI in real time.checked 9 Oct 2026
Hardware requirements
AFMG lists 4 GB or more of RAM, a 1.0 GHz or faster processor, and a sound card or audio interface as requirements or recommendations.checked 9 Oct 2026
Integrations
SysTune offers an open plug-in API and lists integrations from manufacturers including d&b audiotechnik, Lake, and Linea Research.checked 9 Oct 2026
Intended users
AFMG describes Standard as intended for live sound, audio engineering, installed sound, and development professionals, and Pro as suited to laboratory measurements, loudspeaker development, building acoustics, and installed sound.checked 9 Oct 2026
Measurement channels
SysTune measures on up to eight channels simultaneously, and SysTune Pro adds a channel matrix for measurements using more than eight channels.checked 9 Oct 2026
Measurement signals
It supports live sound, sweeps, pink noise, and user-defined signals.checked 9 Oct 2026
Measurement technology
AFMG says SysTune uses its patented Real-Time Deconvolution algorithm to measure and process full-length impulse responses in real time.checked 9 Oct 2026
Operating system
AFMG lists Windows Vista SP1, Windows 7, Windows 8, Windows 10, and Windows 11 as supported operating systems.checked 9 Oct 2026
Purpose
SysTune performs real-time audio measurement and analysis for live sound, installed sound, and industry applications.checked 9 Oct 2026
Remote control
Its browser-based web interface lets users remotely control measurements over Wi-Fi from mobile devices whose browsers support SVG graphics.checked 9 Oct 2026
Security and data handling
AFMG's website privacy policy says website data is stored in the EU by hosting providers whose data centers are TÜV-certified to ISO 27001.checked 9 Oct 2026
Support
AFMG's SysTune license terms state that email and telephone technical support are provided for six months after purchase.checked 9 Oct 2026
Virtual EQ
Standard simulates high-pass, low-pass, shelving, and four parametric filters, while Pro adds 20 configurable IIR or FIR filters.checked 9 Oct 2026

The company

Headquarters
Berlin, Germanychecked 28 Sep 2026

Money

Trial
AFMG provides a SysTune Trial Request page, but the opened page does not state a trial duration.checked 9 Oct 2026
